Custom3.5mmx0.4mm Enameled Flat Copper Wire For Motor Winding

Product Categories
Tianjin Ruiyuan Electric Material Co,.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

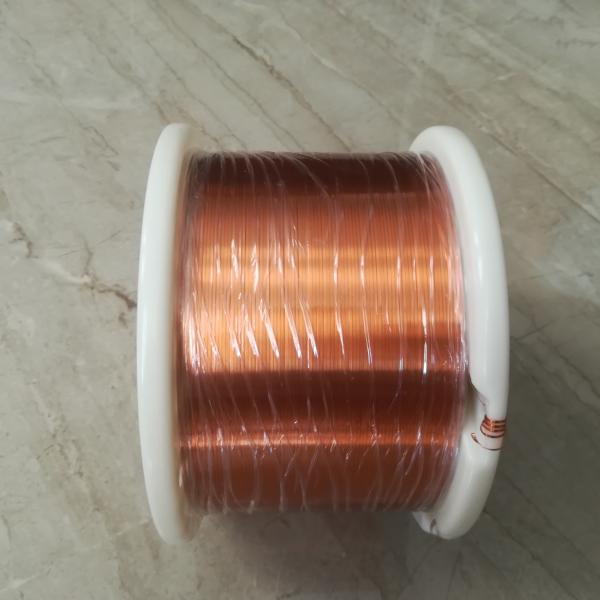

Custom3.5mmx0.4mm Enameled Flat Copper Wire For Motor Winding

Brand Name : Rvyuan

Certification : IEC/NEMA/JIS/RoHS/ISO

Place of Origin : China

Price : Negotiation

Payment Terms : Negotiation, T/T, L/C

MOQ : Different types with differet MOQ

Packaging Details : Spool with carton

Delivery Time : 2-15 workding days

Supply Ability : Satisfy your demand

Model Number : Class 220

Unilateral Insulation Layer Thickness : 0.022mm

Shape : Rectangular

Key Word : Custom3.5mmx0.4mm Enameled flat copper wire for Motor Winding

Thickness : 0.4mm

Product Category : Rectangular Copper Wire

Type : Insulated

Product Name : Custom3.5mmx0.4mm Enameled flat copper wire for Motor Winding

Conductor Dimension (Width) : 3.5mm

Contact Now

Custom3.5mmx0.4mm Enameled flat copper wire for Motor Winding

Our Rectangular Copper Wire has a solid conductor type, ensuring stable and consistent electrical conductivity. With a thickness of 0.4mm, it is perfect for those who need a 3.5mmx0.4mm flat wire. This thickness is ideal for use in a variety of electrical applications, including transformers, motors, and generators.

Our Rectangular Copper Wire is insulated, which means it has a protective layer to prevent electrical shocks or shorts. This feature is essential to ensure safety in electrical applications and to protect the wire from damage caused by external factors such as moisture or heat.

Features:

Product Name: Rectangular Copper Wire

Product Category: Rectangular Copper Wire

Key Word: AIW 220 3.5mmX0.4mm Enameled Flat Copper Wire For Automotive

Width: 3.5mm

Conductor Type: Solid

Unilateral Insulation Layer Thickness: 0.022mm

  • Description: This Rectangular Copper Wire is a flat wire with a width of 3.5mm and a solid conductor type. It is coated with a 0.022mm unilateral insulation layer, making it suitable for use in automotive applications. The AIW 220 3.5mmX0.4mm Enameled Flat Copper Wire is a versatile and durable option for any project that requires a Rectangular copper wire or Rectangular wire.

Item

conductor dimension

Unilateral insulation

layer thickness

Overall dimension

Dielectric

breakdown

voltage

Conductor resistance

Thickness

Width

Thickness

Width

Thickness

Width

Unit

mm

mm

mm

mm

mm

mm

kv

Ω/km 20℃

SPEC

AVE

0.400

3.500

0.025

0.025

Max

0.409

3.560

0.040

0.040

0.450

3.600

13.510

Min

0.391

3.440

0.010

0.010

0.700

No. 1

0.397

3.499

0.022

0.021

0.441

3.541

2.310

12.720

No. 2

1.540

No. 3

1.632

No. 4

1.324

No. 5

2.141

Avg

0.397

3.499

0.022

0.021

0.441

3.541

1.789

No. of reading

1

1

1

1

1

1

5

Min. reading

0.397

3.499

0.022

0.021

0.441

3.541

1.324

Max. reading

0.397

3.499

0.022

0.021

0.441

3.541

2.310

Range

0.000

0.000

0.000

0.000

0.000

0.000

0.986

Result

OK

OK

OK

OK

OK

OK

OK

OK
