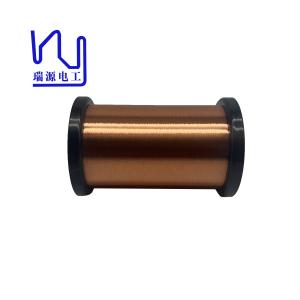

40.5AWG Ultra Fine Copper Wire 0.075mm For Electronic Devices UL Approved

Name: 405AWG Ultra Fine Copper Wire 0075mm For Electronic Devices UL Approved
Brand: RVYUAN
Price: 1 USD

Brand Name : RVYUAN

Model Number : 0.075mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 5 kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : 40.5AWG Ultra Fine Copper Wire 0.075mm For Electronic Devices UL Approved

Thermal rating : 155

Insulation Material : Polyurethane

Diameter : 0.075mm

Conductor material : Copper

Key word : 40.5AWG Ultra Fine Copper Wire 0.075mm For Electronic Devices UL Approved

Contact Now

40.5AWG Ultra Fine Copper Wire 0.075mm For Electronic Devices UL Approved

The solderable nature of enamelled copper wire allows for seamless integration in complex medical devices, ensuring a strong connection and optimal functionality. The importance of enamelled copper wire in the microelectronics and medical device industries cannot be overstated. Its unique combination of ultra-fine diameter, high temperature resistance and weldable properties makes it integral to the development of cutting-edge technologies in these areas.

Test Items	Requirements	Test Data
Test Items	Requirements	1^st Sample	2^nd Sample	3^rd Sample
Appearance	Smooth & Clean	OK	OK	OK
Conductor Diameter	0.075mm ±0.002mm	0.075	0.075	0.075
Thickness of Insulation	≥ 0.008 mm	0.010	0.010	0.010
Overall Diameter	≤ 0.089 mm	0.085	0.085	.085
DC Resistance	≤ 4.119 Ω/m	3.891	3.891	3.892
Elongation	≥ 15%	22.1	20.9	21.6
Breakdown Voltage	≥550 V	1868	2051	1946
Pin Hole	≤ 5 faults/5m	0	0	0
Adherence	No cracks visible	OK	OK	OK
Cut-through	230℃ 2min No breakdown	OK	OK	OK
Heat Shock	200±5℃/30min No cracks	OK	OK	OK
Solderability	390± 5℃ 2 Sec No slags	OK	OK	OK
Key word	40.5AWG Ultra Fine Copper Wire 0.075mm For Electronic Devices UL Approved
Producto name	40.5AWG Ultra Fine Copper Wire 0.075mm For Electronic Devices UL Approved
